Side Wall Belt
Features:
- Suitable for conveying materials at angles of up to 90 degrees, maximizing space utilization.
- The design prevents material spillage by eliminates the need for more transfer points
- Available in a wide range of belt sizes, making it suitable for handling almost any material.
- The incline angle can be easily adjusted with specially reinforced belts and press rollers, offering flexibility for varying material handling needs.
- The reduced number of components results in lower overall system and maintenance costs compared to traditional conveyor installations.
Applications:
Features:
High Resilience
Sustainable
Heat & Weather Resistant
Durable Solutions for Demanding Applications
Our rubber products are engineered for diverse industrial needs, offering superior resistance to heat, fire, oil, and abrasion. From general-purpose and chevron belts to pulley lagging and rubber sheets, each solution ensures optimal performance, durability, and reliability across material handling, safety-critical, and heavy-duty conveyor applications.
Belt Description: One of the key advantages of this type of belt is its ability to smoothly transition from horizontal to inclined or vertical positions and back again, without experiencing bowing or sagging. This flexibility makes it ideal for applications such as S-conveyors. The cross-rigidity of the base belt is crucial in maintaining stability at these deflection points, allowing it to bend without losing its shape or compromising performance. Additionally, the return section of the belt, supported by stub idlers, depends on the cross-rigidity to ensure consistent operation and minimize wear. This feature guarantees reliable performance even in complex conveyor configurations.
TYPE: A-XE
Suitable for light duty applications only. Available in two or three ply range
TYPE: A-XOE
Suitable for medium to heavy duty applications
TYPE: A-XE+2
With increase in cross-rigidity and suitable for heavy duty applications
TYPE: A-XESC
With increase in cross-rigidity with steel cross rigid fabric and suitable for heavy duty applications
X = Cross-Stabilised construction
E = Polyester Tension Plies
+2 = Number of Separate Cross-Stabilising Plies
SC = Steel Cord Cross-Stabilised

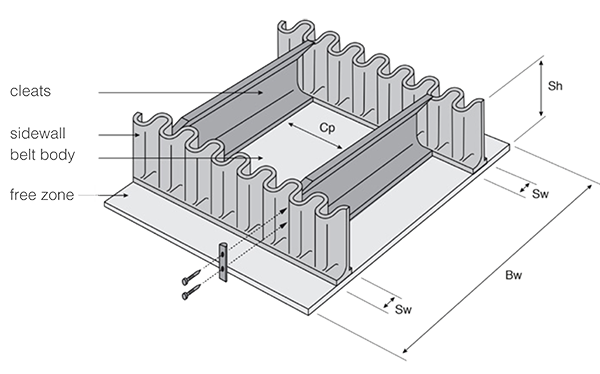

Sh = Sidewall Height
Bw = Belt Width
Cp = Cleast Pitch
Sw = sidewall-foot with

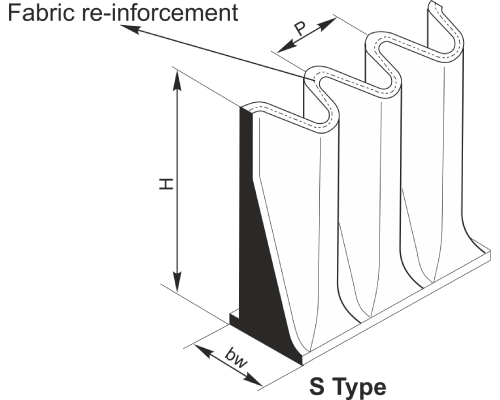

| TYPE | Height (H), mm | Base Width (bw), mm | Pitch (P), mm | Wt, kg/m |
|---|---|---|---|---|
| S | 40 | 50 | 40 | 0.8 |
| 60 | 50 | 40 | 1.8 | |
| 80 | 50 | 40 | 2.0 | |
| 100 | 50 | 40 | 2.2 | |
| 120 | 50 | 40 | 2.4 | |
| 120 | 75 | 60 | 2.65 | |
| HD-S (Fabric reinforced) | 160 | 75 | 60 | 4.8 |
| 200 | 75 | 60 | 6.5 | |
| 240 | 75 | 60 | 7.4 | |
| 280 | 75 | 60 | 8.5 | |
| 300 | 75 | 60 | 9.5 |

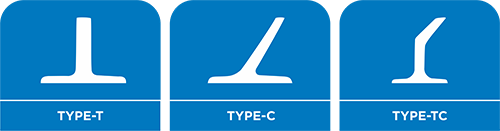

| TYPE | HEIGHT , mm | BASE WIDTH, mm |
|---|---|---|
| Type T-40 | 40 | 70 |
| Type T-50 | 50 | 70 |
| Type T-60 | 60 | 100 |
| Type T-80 | 80 | 100 |
| Type C-75 | 75 | 80 |
| Type C-90 | 90 | 110 |
| Type C-110 | 110 | 110 |
| Type TC-75 | 75 | 80 |
| Type TC-90 | 90 | 100 |
| Type TC-110 | 110 | 110 |
| Type TC-140 | 140 | 160 |
| Type TC-180 | 180 | 160 |
| Type TC-220 | 220 | 260 |
| Type TC-260 | 260 | 175 |
| Type TC-280 | 280 | 175 |
