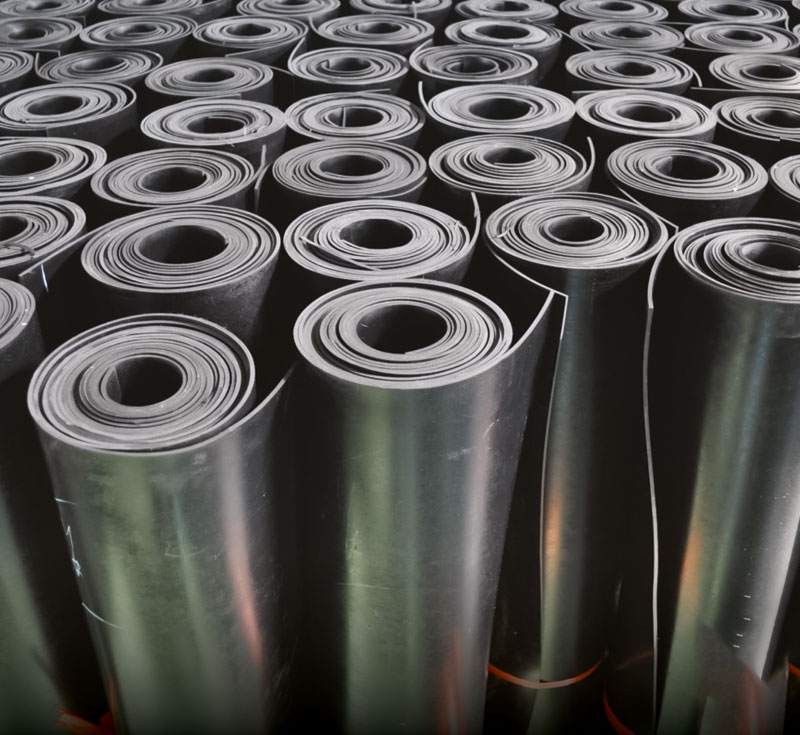

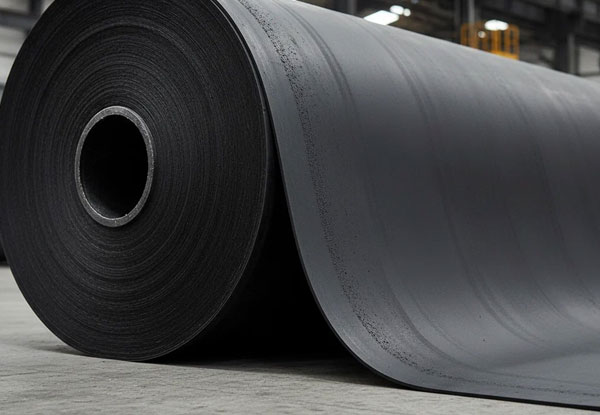

Rubber Sheet
Our rubber sheets are engineered for strength, flexibility, and resistance to wear, chemicals, and extreme conditions. Ideal for industrial, commercial, and agricultural applications, they ensure long-lasting performance and reliability.
We offer a wide range of rubber sheet types, including natural, neoprene, EPDM, and nitrile. Custom thicknesses and sizes are available to meet diverse requirements with precision and quality assurance.
Applications:
- Agriculture
- Mining
- Construction
- Steel & Metal Industries
Other Industry:
Oil & Gas, Chemical Processing, Food
Processing, Power Plants, Marine & Shipbuilding, Packaging Industry, Electrical
Insulation, Water Treatment, Plants, Cement Industry, Textile Manufacturing, Heavy
Engineering, Railway & Transport, Defense & Aerospace
Features:
High Durability
Chemical Resistance
Thermal Stability
Tailored for Tough Conditions
Durable Solutions for Demanding Applications
Our rubber products are engineered for diverse industrial needs, offering superior resistance to heat, fire, oil, and abrasion. From general-purpose and chevron belts to pulley lagging and rubber sheets, each solution ensures optimal performance, durability, and reliability across material handling, safety-critical, and heavy-duty conveyor applications.

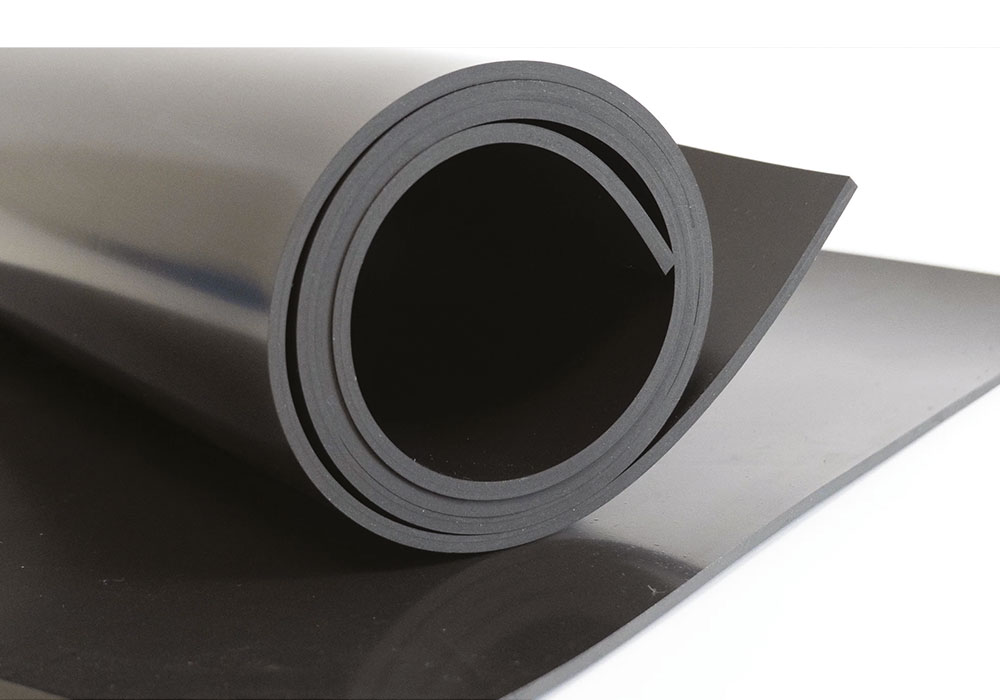

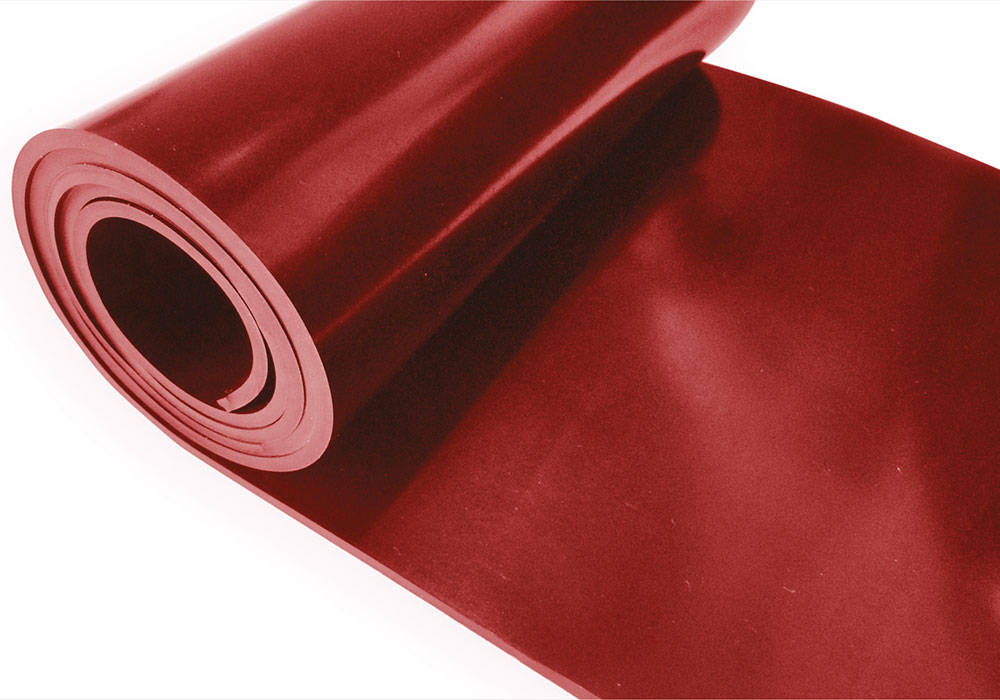

Natural Rubber Sheet
Natural Rubber (NR) is excellent for abrasion, impact, and corrosion resistance. The Allianz AlliFlex range provides unmatched wear performance in the toughest abrasion environments. The Allianz AlliFlex range is suitable for rubber lining in Mining, Sand, Gravel, and Glass industries for equipment protection and noise dampening. Allianz AlliFlex rubber sheet with CN bonding layer offers excellent durability, ensuring that the adhesion remains intact over an extended period.
Technical Information:-
| Sl.No | Rubber Characteristics | Units | Alliflex-40 | Alliflex-60 |
|---|---|---|---|---|
| 1 | Polymer | NR | NR | |
| 2 | Tensile Strength | MPa | 24 Min. | 24 Min. |
| 3 | Elongation at Break | % | 650 Min. | 650 Min. |
| 4 | Shore Hardness | °A | 40±5 | 6Q+5 |
| 5 | Specific Gravity | g/cm3 | 1.1±0.03 | 1.1±0.03 |
| 6 | Abrasion Loss at 5 N | mm3 | 80-90 Max. | 90-100 Max. |
Product Characteristics:-
| Color | Standard Thickness | Standard Length | Standard Production Width | Available Range |
|---|---|---|---|---|
| Black/Orange/Yellow/Red | 3mm-50mm | 10m | 1000mm to 1600mm | With & Without Bonding Layer |
Natural Rubber Sheet
A-AlliMax is a versatile rubber material designed for excellent performance in both wet and dry applications. It offers superior abrasion and tear resistance, making it suitable for various industrial uses. Known for its durability, A-AlliMax provides long-lasting protection and is an ideal choice for demanding environments. The CN bonding layer enhances its longevity, ensuring reliable adhesion over time.
Technical Information:-
| Sl.No | Rubber Characteristics | Units | Alliflex-40 | Alliflex-60 |
|---|---|---|---|---|
| 1 | Polymer | NR | NR | |
| 2 | Tensile Strength | MPa | 18 Min. | 20 Min. |
| 3 | Elongation at Break | % | 650 Min. | 650 Min. |
| 4 | Shore Hardness | °A | 40±5 | 6Q+5 |
| 5 | Specific Gravity | g/cm3 | 1.1±0.03 | 1.1±0.03 |
| 6 | Abrasion Loss at 5 N | mm3 | 100-110 Max. | 100-110 Max. |
Product Characteristics:-
| Color | Standard Thickness | Standard Length | Standard Production Width | Available Range |
|---|---|---|---|---|
| Black | 3mm-30mm | 10m | 1000mm to 1600mm | With & Without Bonding Layer |

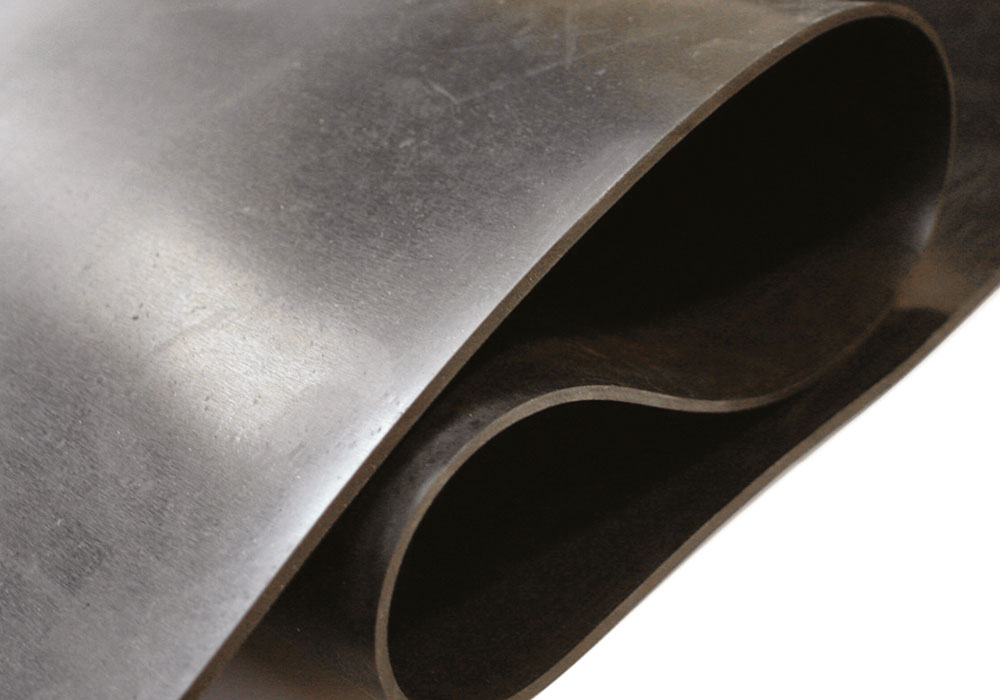

Nr+Sbr Rubber Sheet
A-ErroTex rubber sheeting provides outstanding abrasion resistance and corrosion protection, making it ideal for various industrial lining applications. It withstands repeated stress while maintaining strong physical and mechanical properties. With a CN bonding layer, A-ErroTex ensures long-lasting durability and reliable performance, even in challenging environments, enhancing the overall strength of bonded materials and surfaces.
Technical Information:-
| Sl.No | Rubber Characteristics | Units | AlliGrip 45 |
|---|---|---|---|
| 1 | Polymer | NR+SBR | |
| 2 | Tensile Strength | MPa | 16 Min. |
| 3 | Elongation at Break | % | 550 Min. |
| 4 | Shore Hardness | °A | 45±5 |
| 5 | Specific Gravity | g/cm3 | 1.1±0.03 |
| 6 | Abrasion Loss at 5 N | mm3 | 110-120 max. |
Product Characteristics:-
| Color | Standard Thickness | Standard Length | Standard Production Width | Available Range |
|---|---|---|---|---|
| Black | 3mm-30mm | 10m | 1000mm to 1600mm | With & Without Bonding Layer |

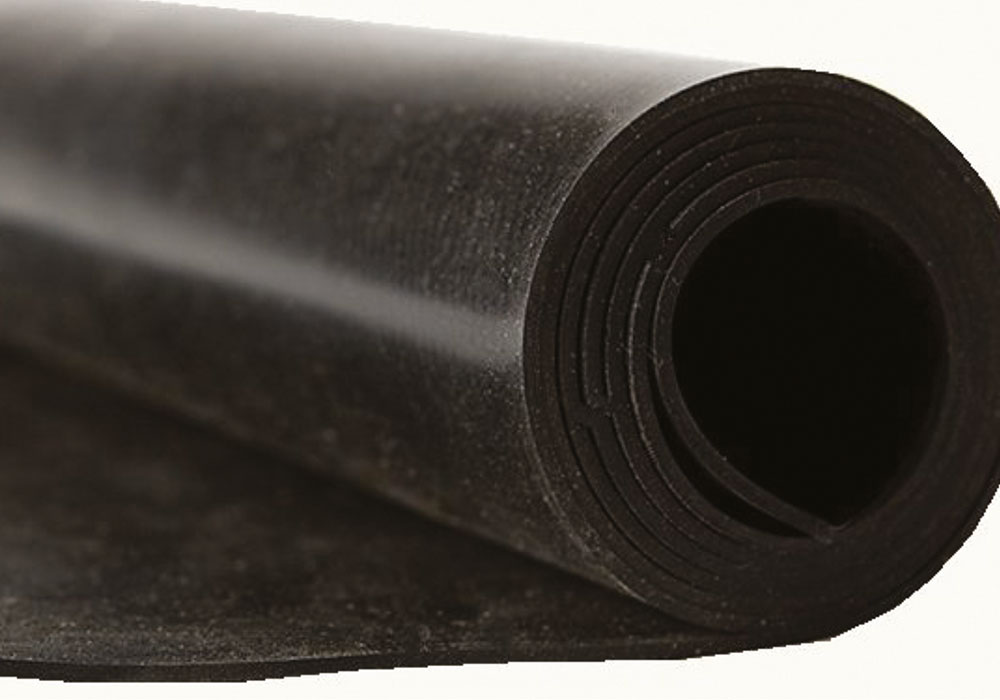

Nr+Sbr Rubber Sheet (Eco)
A-ErroTex Eco rubber sheeting offers a cost-effective solution with basic abrasion resistance and corrosion protection, making it suitable for various industrial lining applications. While it provides reasonable physical and mechanical properties, it is designed with an emphasis on affordability rather than high-end performance. The eco-friendly CN bonding layer ensures adequate durability, providing reliable performance in less demanding environments while maintaining a reduced environmental impact.
Technical Information:-
| Sl.No | Rubber Characteristics | Units | AlliGrip-ECO-45 | AlliGrip Eco-60 |
|---|---|---|---|---|
| 1 | Polymer | NR+SBR | NR+SBR | |
| 2 | Tensile Strength | MPa | 8 Min. | 8 Min. |
| 3 | Elongation at Break | % | 450 Min. | 350 Min. |
| 4 | Shore Hardness | °A | 45±5 | 60±5 |
| 5 | Specific Gravity | g/cm3 | 1.28±0.03 | 1.28±0.03 |
| 6 | Abrasion Loss at 5 N | mm3 | 180-200 max. | 180-200 max. |
Product Characteristics:-
| Color | Standard Thickness | Standard Length | Standard Production Width | Available Range |
|---|---|---|---|---|
| Black | 3mm-30mm | 10m | 1000mm to 1600mm | With & Without Bonding Layer |

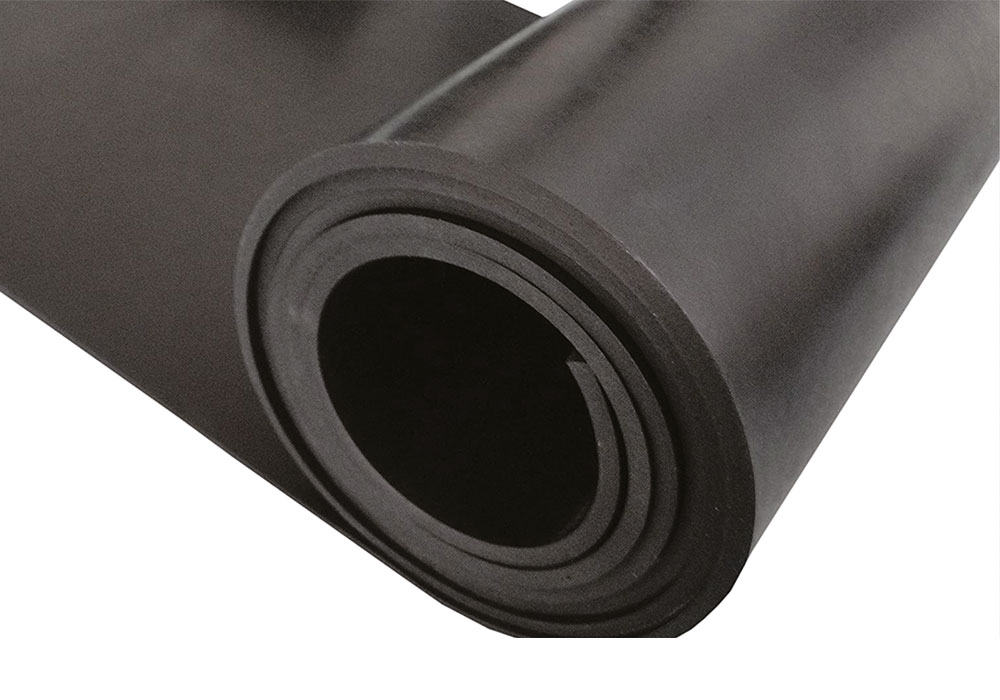

Epdm Rubber Sheet
The product contains a high content of EPDM with significantly better mechanical and physical properties. This makes it highly durable and resistant to extreme temperatures. Its excellent heat resistance allows it to perform well in environments exposed to high temperatures. In fact, it is particularly well-suited for outdoor applications where the material needs to withstand a wide range of temperature fluctuations, ensuring long-lasting performance in diverse weather conditions.
Technical Information:-
| Sl.No | Rubber Characteristics | Units | AlliShield |
|---|---|---|---|
| 1 | Polymer | EPDM | |
| 2 | Tensile Strength | MPa | 10 Min. |
| 3 | Elongation at Break | % | 350 Min. |
| 4 | Shore Hardness | °A | 60±5 |
| 5 | Specific Gravity | g/cm3 | 1.15+0.03 |
| 6 | Abrasion Loss at 5 N | mm3 | 200-220 max. |
Product Characteristics:-
| Color | Standard Thickness | Standard Length | Standard Production Width | Available Range |
|---|---|---|---|---|
| Black | 3mm-30mm | 10m | 1000mm to 1600mm | With & Without Bonding Layer |
Nbr Rubber Sheet
A-AlliGuard is a high-performance rubber sheet made with a high content of NBR (Nitrile Butadiene Rubber) and ACN (Acrylonitrile), offering exceptional resistance to oil and high temperatures. Ideal for industrial applications exposed to oil and thermal stress, it provides long-lasting protection and durability, making it perfect for automotive, fuel systems, and machinery seals. A-AlliGuard ensures reliable performance even in challenging environments.
Technical Information:-
| Sl.No | Rubber Characteristics | Units | Alliguard |
|---|---|---|---|
| 1 | Polymer | EPDM | |
| 2 | Tensile Strength | MPa | 10 Min. |
| 3 | Elongation at Break | % | 300 Min. |
| 4 | Shore Hardness | °A | 60±5 |
| 5 | Specific Gravity | g/cm3 | 1.2+0.03 |
| 6 | Abrasion Loss at 5 N | mm3 | 200-250 max. |
Product Characteristics:-
| Color | Standard Thickness | Standard Length | Standard Production Width | Available Range |
|---|---|---|---|---|
| Black | 3mm-30mm | 10m | 1000mm to 1600mm | With & Without Bonding Layer |
Surface Finishes & Construction
Choose the pattern for the working face, the finish for the underside and the carcass construction.

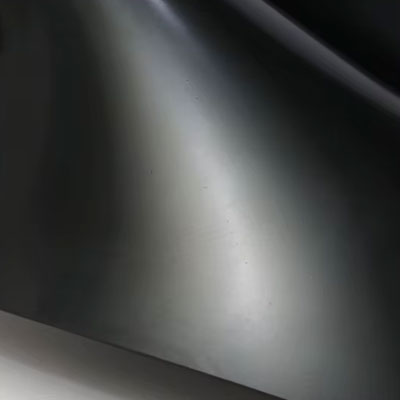

Plain

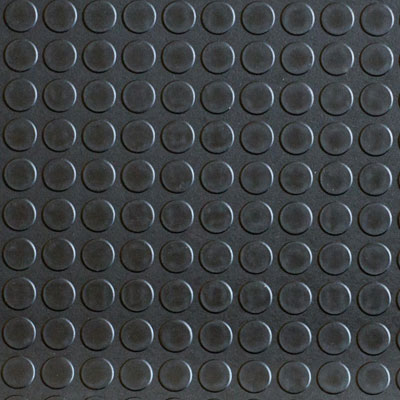

Coin

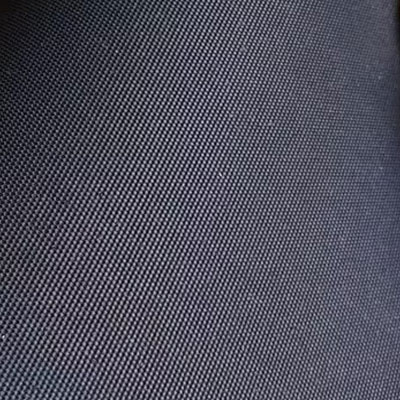

Fabric Impression

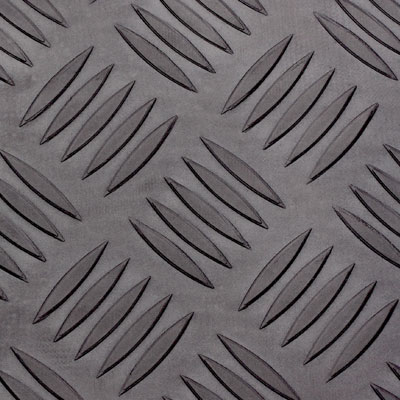

Checker

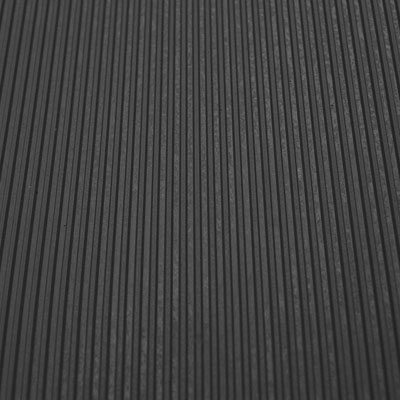

Fine Rib

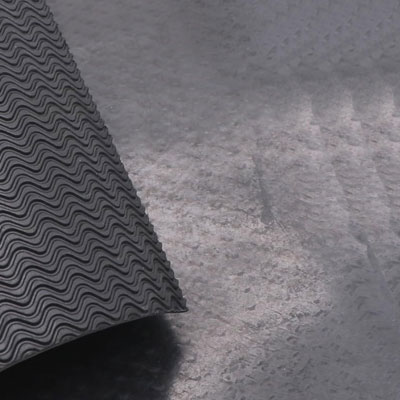

Plain Bottom

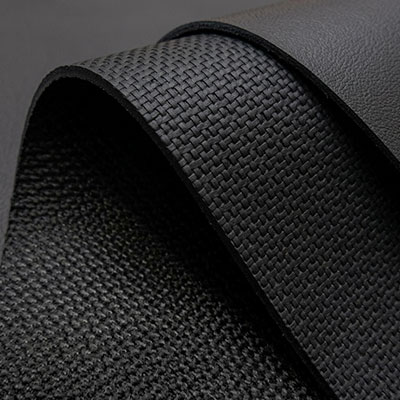

Fabric Impression Bottom

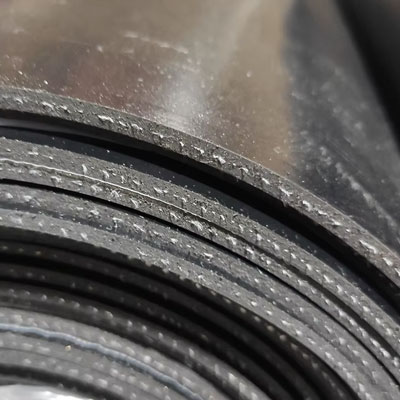

Fabric Inserted
